CS361XX series Network Analyser is separated into three parts in frame: Source, Input Processing and Display, all the three parts have their unique characteristics.

Datasheets:

Series_CS361XX.pdf

CS7600 series Precision LCR MEter is a new-type digital component analyzing instrument with the widest measurement bandwidh (20Hz-2MHz), highest frequency resolution (minimum to 1µHz) and highest basic measurement accuary (0.05%) at present in China.

( More Information... )

Datasheets:

Series_CS7600.pdf

Designed to address the challenges of DTV tuner testing,the LG 3804 provides all of the signal control necessary for testing the performance of DVB-T compliant tuners and receivers. Consequently, the modulated signal covering VHF and UHF channels can be output. Since a pseudo random signal source (PN) and BER counter are provided, the BER measurement of a TV set and tuner can be performed with this model only.

( More Information... )

Datasheets:

DVBT Generator.pdf

Programmable meters with low resistance. ( More Information... )

The B+K 4050 series programmable multifunction generator is an exceptionally versatile and economical instrument for application in R&D, Manufacturing Test, Service Repair and Training. Featuring an adjustable triple output power supply and Wavaform generator, it has the ability to provide power and signal sources for a circuit while the universal logic probe, auto-ranging frequency counter, and digital voltmeter allows you to simultaneaously analyse and measure circuit activity. This compact device combines the functionality of five standard laboratory instruments into one integrated unit, making the task of switching instruments as easy as pressing a button.. Datasheets:

Multiple Function Generator.pdf

The Conquest series USB Protocol Analyzers provide a full-feature and low-cost system for protocol analysis. The Conquest supports all USB bus speeds (may vary by configuration), and provides upper level protocol decodes, extensive statistical reports, and an easy-to-use graphical interface. Conquest is based on an upgradeable FPGA design which allows upgrades in the field as standards develop and new capabilities are released. ( More Information... )

Datasheet:

Conquest_series_J.pdf

The USBTracer/Trainer™ Advanced Verification System is LeCroy’s top-of-the-line USB protocol analyzer with integrated USB exerciser capability. It allows designers and validation engineers to quickly and easily transmit valid and invalid traffic, selectively record the exchange and display the results using the CATC Trace Expert Analysis software. This all-in-one platform provides fast, efficient and accurate test and verification of USB semiconductors, devices, and systems.

( More Information... )

The PN9002 is a unique test system for the design and manufacturing of radar systems. Fast, compact and fully automated, the PN9002 is a stand-alone system, ideal for radar stability measurements. It integrates all the needed hardware and software to test a two port module for amplitude and phase stability. The PN9002 acts as a "micro-Radar" providing pulsed signals to the UUT and analyzing the received pulses. ( Read more... )

Frequency synthesizer module ERM meets exactly the needs for DVB-T application from 400MHz up to 2GHz. Features:

• Synchronization of the internal reference by an external 10MHz
• Automatic switching between internal and sync mode
• Pin indicating the status of module's reference
• Filtering of external reference
• Reference input and output
• Read and write frequency by serial port
• Built-in automatic test high accurate (standard compliance)

( More Information... )

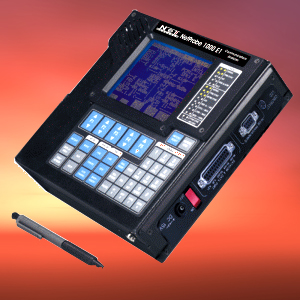

Provides optical and electrical STM-1, T3, T1 and E1 interfaces. It allows access to mappings from VC3 & VC4 to T3, T1 and E1, as well as BERT and pointer tests. This model also offers complete T3, T1, E1, DS0 and OC3 analyzers, all in one box. It is the world's smallest and most complete full-function SDH/SONET test set, rivaling the full size SDH/SONET analyzers in its capabilities:

• Full-function STM-1, OC-3, T3, T1,E1, DS0 testing.
• 1310nm and 1510 nm lasers
• SDH /T3/T1/E1/DS0 mapping
• T3/T1/E1/DS0 MX3 muxing
• Bit interleaved parity measurement and analysis
• T3, T1 and E1 pulse mask analysis
• Datacom BERT interfaces V.35, RS-530, RS-449, RS-232
• DSP-based VF testing
• Easy access to section, line and path overhead to monitor and test SONET/SDH network.

Datatsheet:

Netprob.jpg Netprobe.pdf

MULTIMASTER G7104 one box solution for BTS maintenance. Integration of multi-function, high accuracy & reliability, easy to use G.U.I (Graphic user interface), auto measurement and error logging, compact and lightweight.

( More Information... )

NJZ 2000 Multi system UE tester for use at operator, retail shops, repair centers and manufacturer production lines. Single box multi system tester.GSM/GPRS/W-CDMA.

Features:

• P/E/R-GSM,DCS?PCS,GSM850/W-CDMA user friendly with built in automatic test
• Built-in automatic test high accurate (standard compliance)
• Power measurement 0.7dB, full tool set for repair
• Manual test
• Tx analyser, signal generator
• Spectrum monitor
• Stores user configurable test plans and test results
• Compatibility with PC peripherals
• Supports TCP/IP communication protocol
